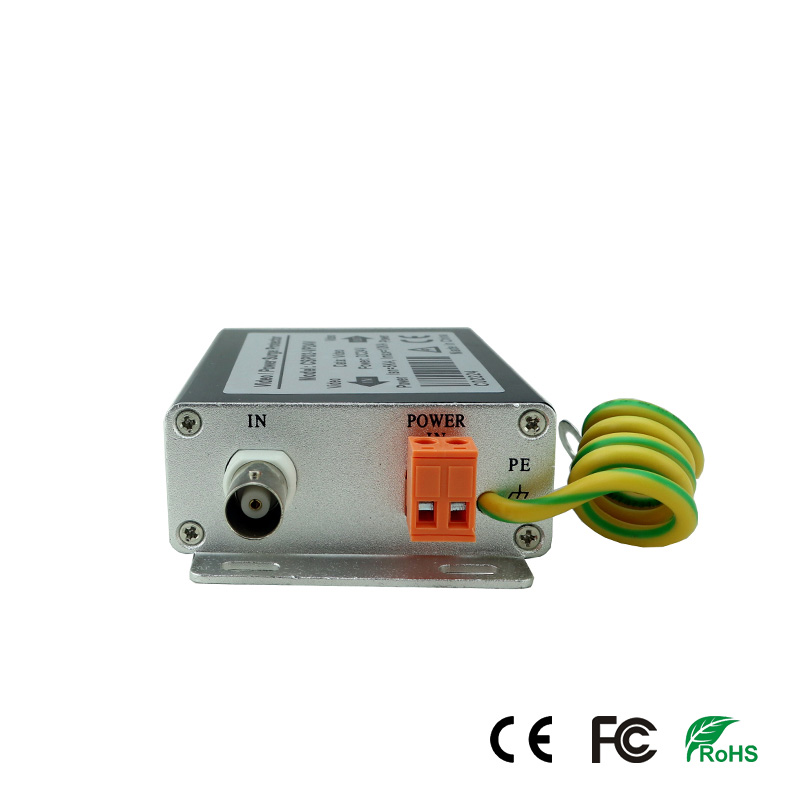

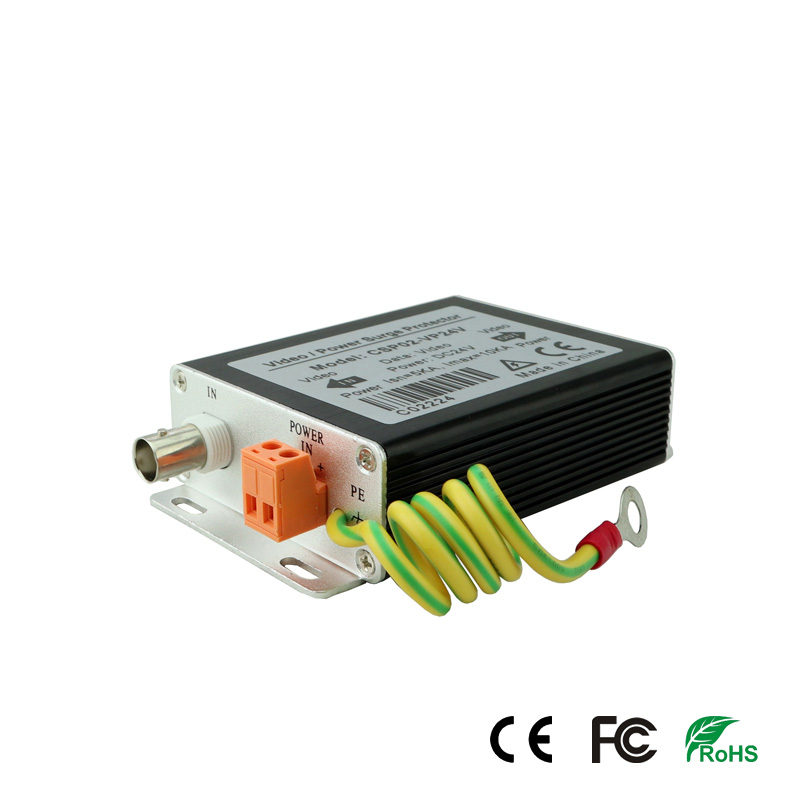

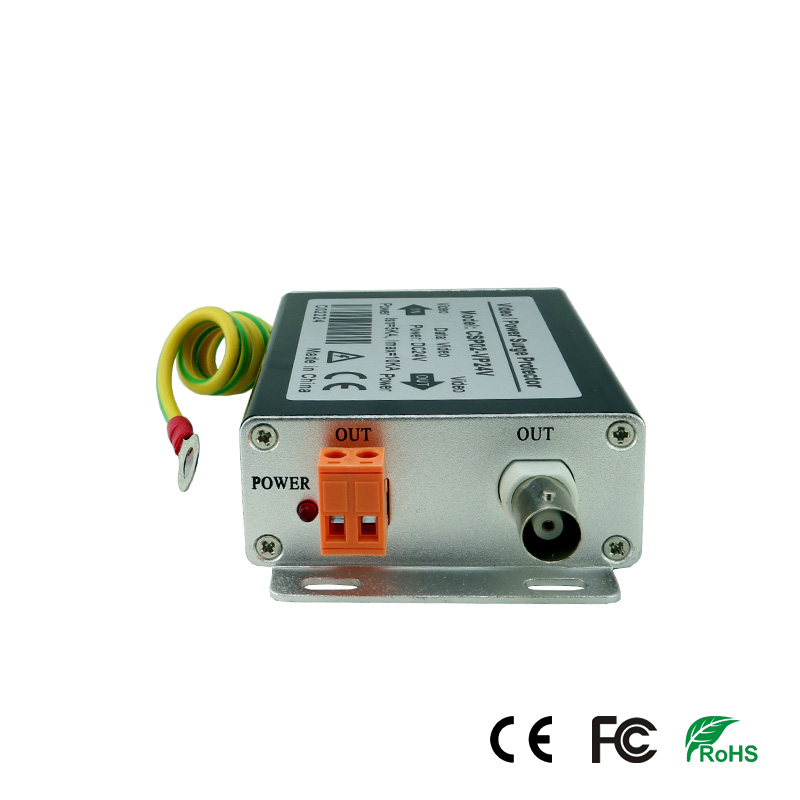

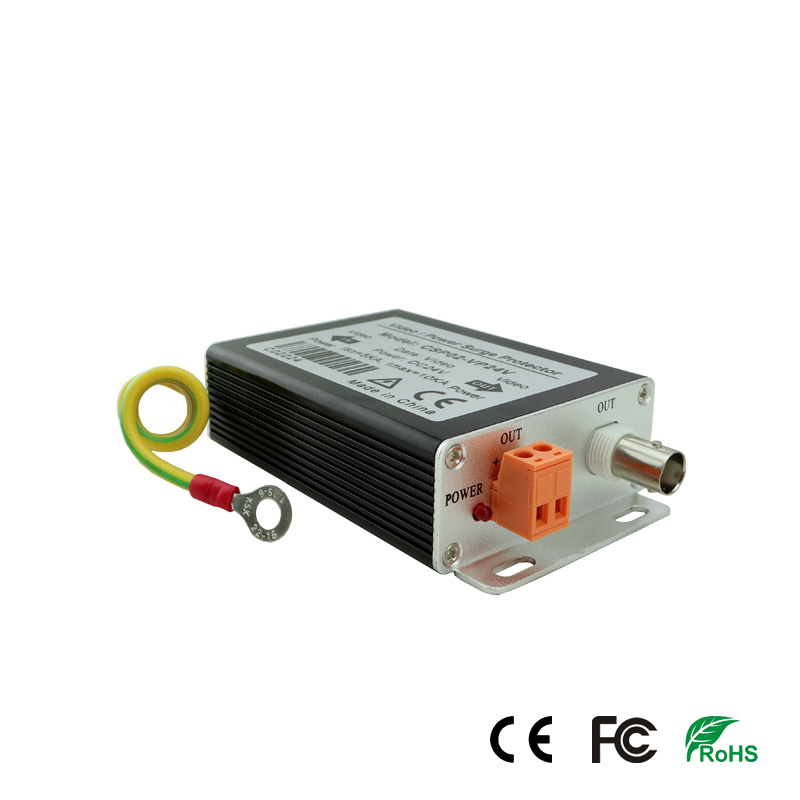

Surge Protector

SP-VP24V

Video+24V Power Supply Surge Protector
Low voltage limited
Quick response
Aluminium Housing
Product description: Video+24V Power Supply Surge Protector Protector Video & Power 2 in 1 Surge Protector Low voltage limited Multi-level protection Quickly response Less insertion loss
INQUIRY

Features
1.Video & Power 2 in 1 Surge Protector
2.Low voltage limited
3.Multi-level protection
4.Quickly response

5.Less insertion loss

More Optional Models
SP-VP12V	Video+12V Power Supply Surge Protector
SP-VP24V	Video+24V Power Supply Surge Protector
SP-VP220V	Video+220V Power Supply Surge Protector

Specifications

Item	Model	SP-VP24V
Video	Rated operation voltage	5V
	Max continuous operating voltage	6V
	Nominal discharge current in(8/20µs)	5KA
	Max discharge current(8/20µs)	10KA
	Voltage protection level(10/700μs)	<20V
	Reacting time	≤1ns
	Inserting loss	≤0.2dB
	Inserting resistance	≤1Ω
	Signal Bandwidth	10MHz
	Port	BNC
Power	Nominal working voltage	AC/DC 24V
	Max continuous operating voltage	AC/DC 47V
	Nominal discharge current(8/20μs)	5KA
	Max discharge current (8/20μs)	10KA
	Limiting voltage (8/20μs)	<200V
	RLA	≤10A
	Leakage Current	≤5μA
	Reacting Time	≤25ns
Environmental	Working temperature	-20~50°C
	Storage temperature	-40~70°C
	Humidity (Non-Condensing)	0~95%
Stability	MTBF	>30000hrs
