Surge Protector

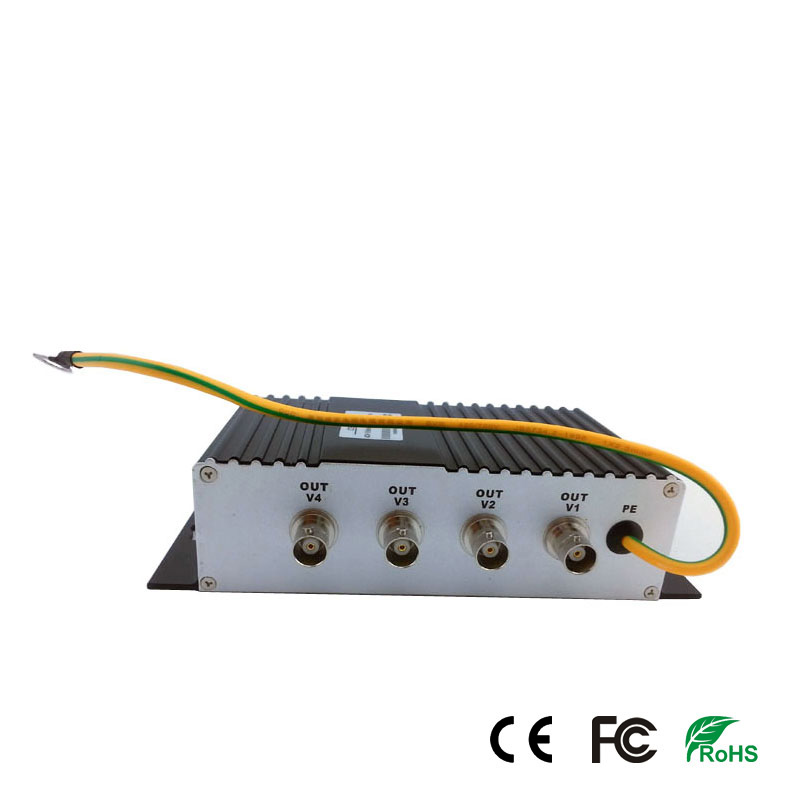

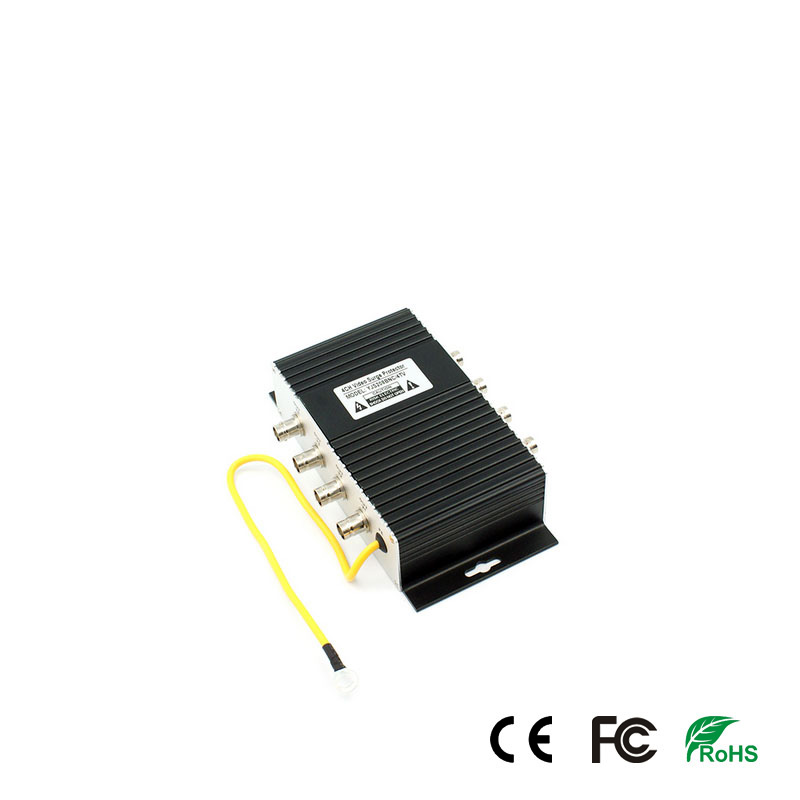

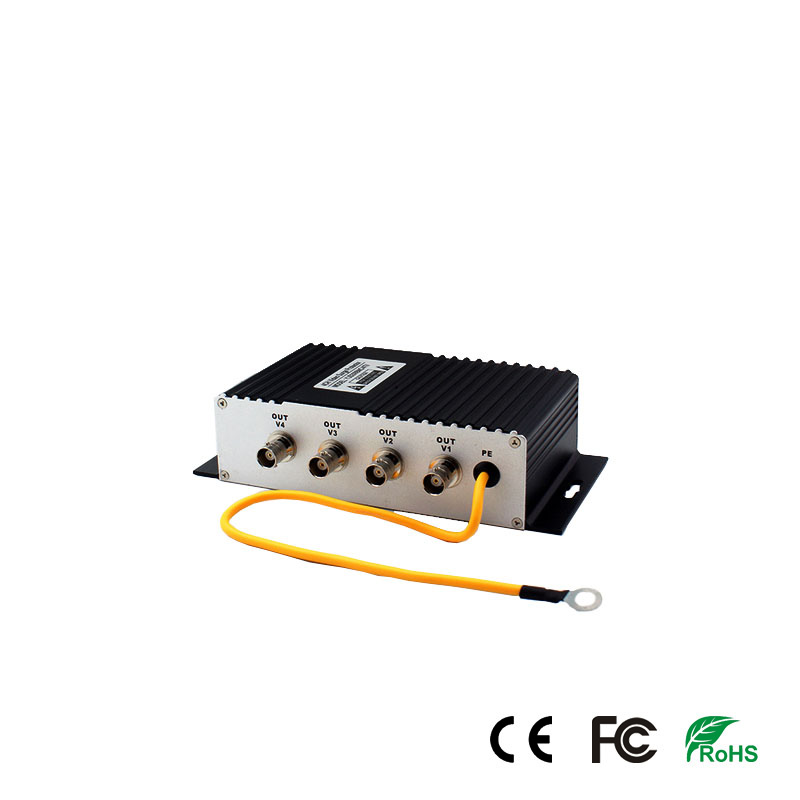

SP-04V

4chs video surge protector
Function Multi-level over voltage protection large capacity discharge current low limiting voltage
Aluminum Housing
Product description: Quick reacting time low inserting loss; Grounding Mode Extending Line to ground; Outlook design Clear mark easily recognized; Aluminum shell delicate size simple installation;
INQUIRY

Features：
4 channel Video surge protector

Multi stage protective circuit, low residual voltage

Low insertion loss, quick response

Low voltage limited

Precise limiting voltage, high discharger current capacity
Micro-strip PCB design, good isolation, low interference
Stable performance, reliable work

Easy installation

Application
1. Video signal device point-to-point protection
2. To protect various video transmission device from being damaged by indirect lightning and surge voltage of signal transmission line, as well as RF transmission under same working voltage
3. Hard disk video and video segmentation machine in Comprehensive control cabinet

Specifications

Item	Model	SP-04V
Video	Video channel	4-ch
	Rated operating voltage	5V
	Max continuous operating voltage	10V
	Nominal discharge current (8/20µs)	5KA
	Max discharge current (8/20µs)	10KA
	Impulse limiting voltage (10/700µs)	<20V
	Insulating resistance	≥0.4MΩ
	Inserting loss	≤0.5dB
	Standing-wave ratio	≤1.2
	Signal bandwidth	10MHz
	Reacting time	≤1ns
Environmental	Working temperature	-20~55°C
	Storage temperature	-40~70°C
	Humidity (Non-condensation)	0~95%
Stability	MTBF	>30000hrs
