Surge Protector

SP-VF

Video Surge Protectors
High transmission rate
Multi-level protection
Product description: ◆ Video Surge Protectors ◆ High transmission rate ◆ Multi-level protection ◆ Quickly response ◆ Larger flow capacity
INQUIRY

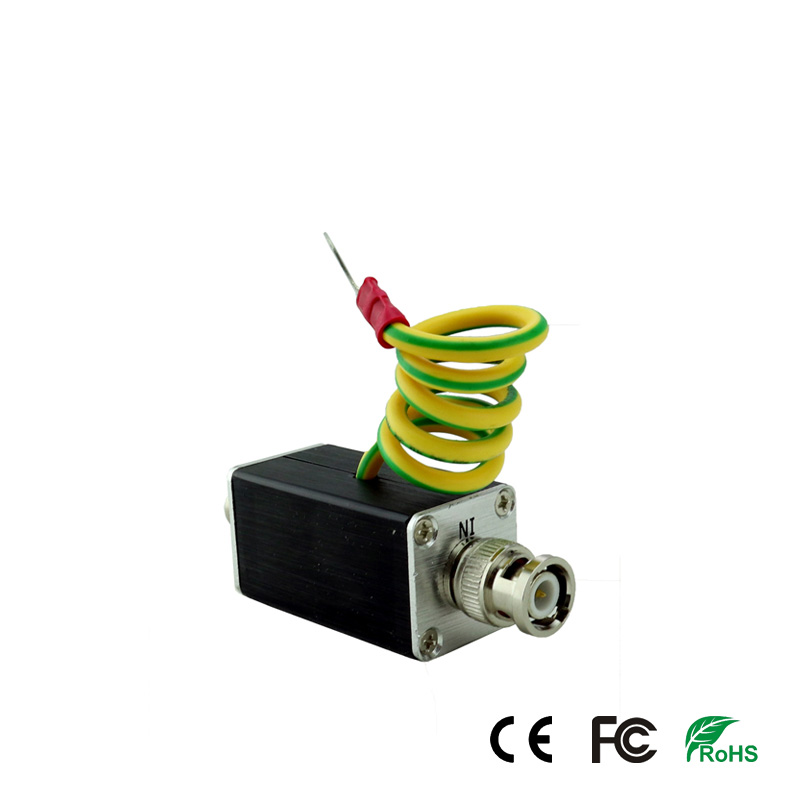

Single Channel Video Surge Protector, BNC Female to Female

Description

Single channel coaxial video surge protector used in CCTV applications to protect CCTV Cameras, DVRs, multiplexers, and any other type of video equipment from power surges. Two of these Video Surge Protectors should be used per camera, one on the security camera end and one on the surveillance DVR end to fully protect your DVR

Working Principle
Surge Protector link to the be protected front-end equipment,when transmission lines were happen to the lighting and other instantaneous over voltage shock,the impulse current through the surge protector protection branch will discharge info the earth,and the output voltage limit in the device allow voltage range.ensure the safety of operation equipment.

Features

CCTV Surge Protecion
used in CCTV system to protect cameras, dvr, PTZ etc.
Avoid products destroy by Lightning, Surge etc
flow capacity, fast response
using multi-level protection circuit, low residual voltage
core components of international brand products, excellent performance
ground through a special process, to avoid signal interference
low residual depression
small size, easy installation

Specifications

Model	SP-VF
Rated operation voltage	5V
Max continuous operating voltage	6V
Nominal discharge current in(8/20μs)	5KA
Max discharge current(8/20μs)	10KA
Voltage protection level(10/700μs)	<20V
Reacting time	≤1ns
Inserting loss	≤0.2dB
Inserting resistance	≤1Ω
Signal Bandwidth	10MHz
Port	BNC
Working temperature	-20°C to +50°C
Storage Temperature	-40°C to +70°C
Humidity	0 to 95%
MTBF	>30000hrs
