Features
Power Surge Protector
Protect DC 12V
Low voltage limited
Multi-level protection
Quickly response
Less insertion loss
| Model | SP-P12V |
| Rated work voltage | DC12V |
| Max. work voltage | Max. DC18V |
| Nominal current | 2.5KA ( 8/20µs ) |
| Max. current | 5KA ( 8/20µs ) |
| Voltage protect level | <75V ( 10/700µs ) |
| Reacting time | ≤25ns |
| RLA | ≤3A |
| Leakage current | ≤5µA |
| Connector type | Grip |
| Dimension/ weight | 65*25*25mm / 52g |
| Test standard | IEC61643-21: 2000 |

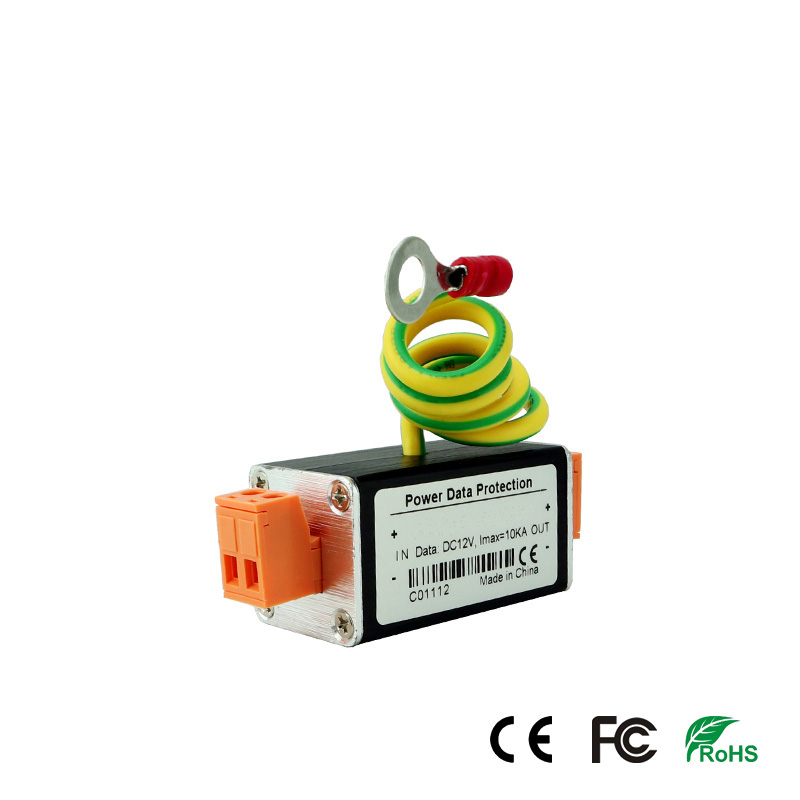

DC12 Power Supply Surge Protector
DC/AC 24 Power Supply Surge Protector
AC220V Power Supply Surge Protector
SP-P12V
SP-P24V
SP-P220V
