10/100/1000Mbit POE Switch

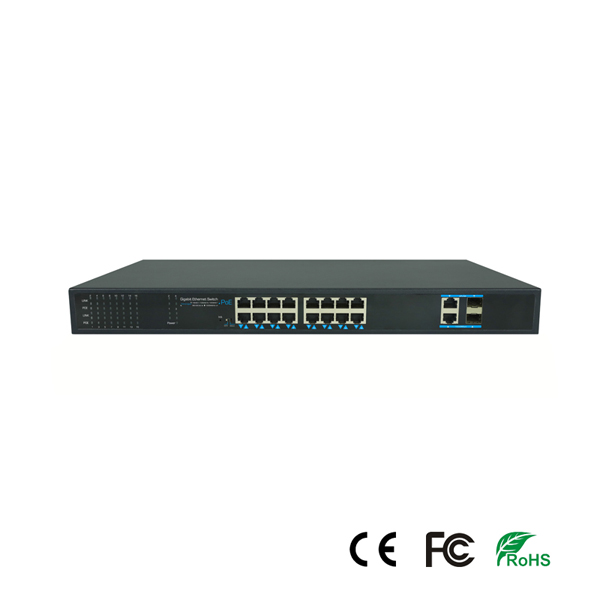

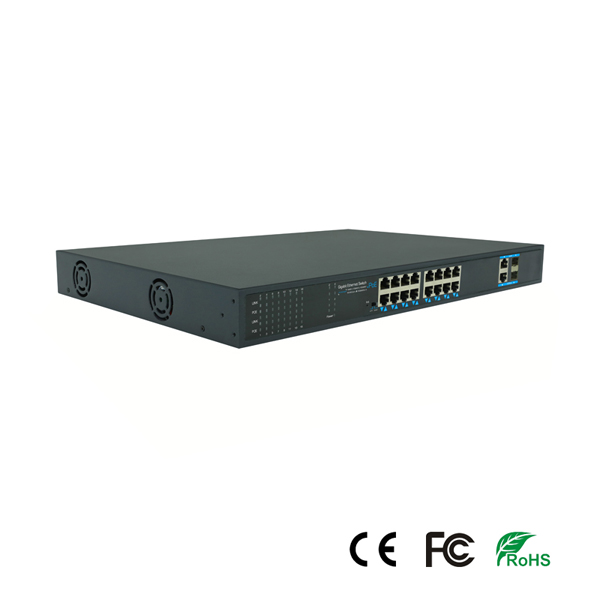

SPE-G4216BE

16 Ports 10/100/1000Mbps Switch
2*10/100/1000Mbps uplink port
2*10/100/1000Mbps SFP port
Poe Standard: IEEE 802.3af/at
Product description: ◆ 20x 10/100/1000Mbps auto-sensing RJ45 ports, 16x 10/100/1000Mbps PoE ports, 2x10/100/1000Mbps uplink port ; 2*10/100/1000Mbps SFP port ◆ Supports port auto-flip (Auto MDI/ MDIX); ◆ Maximum
INQUIRY

Feature:

20x 10/100/1000Mbps auto-sensing RJ45 ports,
16x 10/100/1000Mbps PoE ports, 2x10/100/1000Mbps uplink port ; 2*10/100/1000Mbps SFP port

Supports port auto-flip (Auto MDI/ MDIX);
Maximum power of single PoE port: 15.4W/30W;
Adopts store-and-forward architecture;
IEEE 802.3af/at power on up to 16 ports;
With anti-theft lock;
Protection: Excellent anti thunder, anti static and anti-Interference;
Built in power supply, compact and quiet design,suitable for desktop or wall

Specification

Model	SPE-G4216BE
Power adapter voltage	48-57V DC
POE Ethernet port	1-16 port: 10/100/1000Mbps
Ethernet port	2*Uplink port: 10/100/1000Mbps
Transmission Distance	1-16 port: 0-100m, uplink port: 100m, via Cat5/ 5e/ 6 standard network cable
Network standard	IEEE 802.3/ 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switching capacity	20Gbps
Packet Forwarding rate	14Mpps
MAC table	4K
POE Standard	IEEE 802.3AF/AT
POE power supply type	End-span (1/2+, 36-)
POE power consumption	af=15.4W (each port), at=30W (each port)
Working temperature	0℃~55℃
Relative humidity	20~95%
Storage temperature	-20℃~70℃
MTBF	>30000h
