POE Injector & Splitter

SPE-103

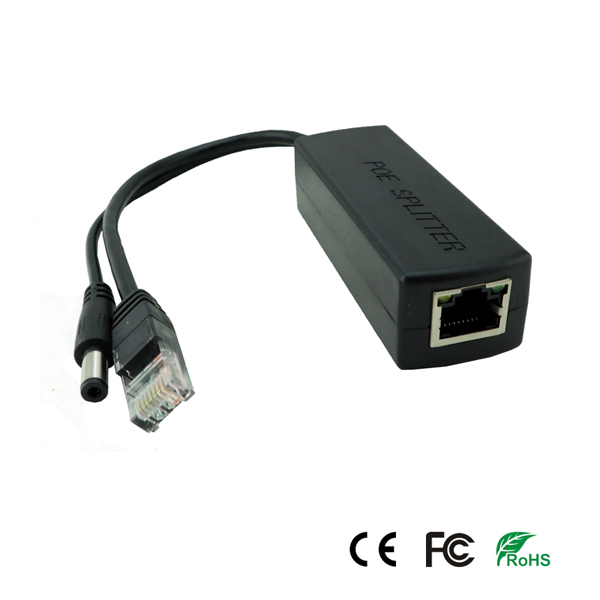

PoE Splitter Power Over Ethernet 48V to 12V 1A-2A
Black Color
Product description: PoE Splitter Power Over Ethernet 48V to 12V 1A-2A
INQUIRY

Features:

PoE Splitter Power Over Ethernet 48V to 12V 1A-2A
RJ45 female INPUT Port:
Support the IEEE 802.3af the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

Specifications:
Compliant with IEEE802.3af 15.4W
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC12V 1A~2A(Rated 1.3A, max. 2A)
Data&Power INPUT Port: from RJ45 female
Data Output Port: RJ45 Male
Power Output Port: 5.5x2.1mm DC Power Plug
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+),3/6(-) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g
DC Out Power Pin: inside positive (+) outside negative (-)
