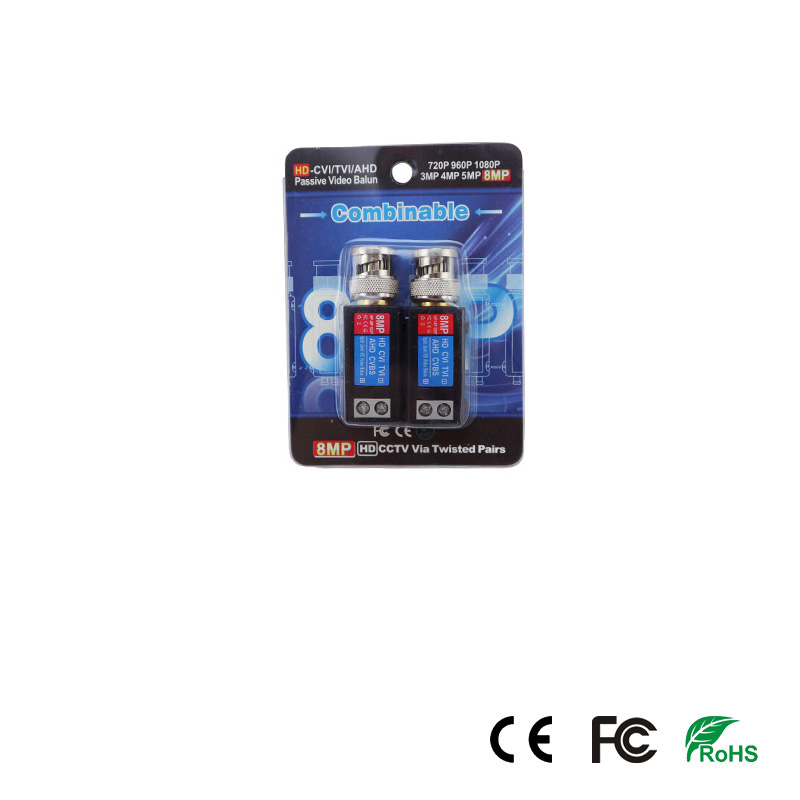

HD Passive Video Balun

SPB-107

HD-CVI/ TVI/ AHD & CVBS
1080P/ 3MP/ 4MP/ 5MP/ 8MP
Built in solid state TVS for surge protection
No power required
Product description: HD Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS, Support 1080P/ 5MP & 8MP, Built in solid state TVS for surge protection
INQUIRY

Features:

1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable for Neat installtion
6. ABS engineering plastic housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade:III
9. Wave Filter design, Anti-statit design
10. Real-time transmission over UTP Cat5e/6

Specification:

Model	SPB-107
Balun Type	Passive
Video transmitting distance	Up to 450m for 720P CVI Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras Up to 350m for 720P/ 960P AHD Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
Video Formats	NTSC, PAL, SECAM
Crosstalk & noise immunity	60dB
Surge protection	4KV, ESD:8KV
Frequency Response	DC to 60Mhz
Wire Type	Unshielded Cat-5 or above twisted pair wire
Impedance	BNC:75 ohms; Terminal: 100 ohms
Working temperature	-10°C to +70°C
Storage Temperature	-10°C to +70°C
Humidity	0 to 95%
Material	ABS engineering plastic
