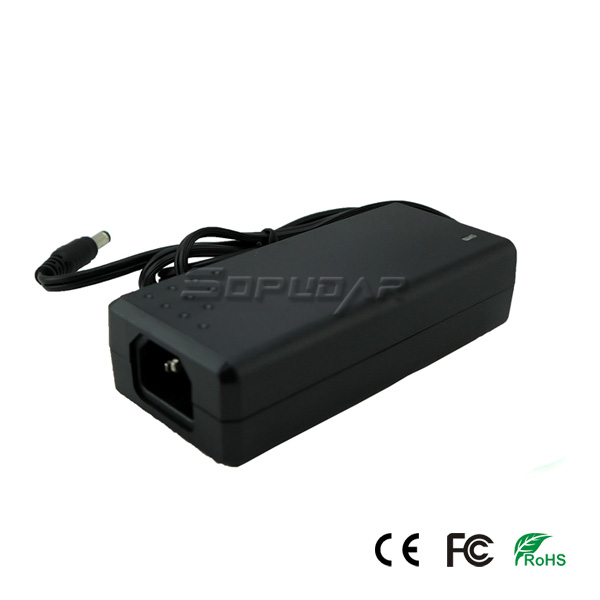

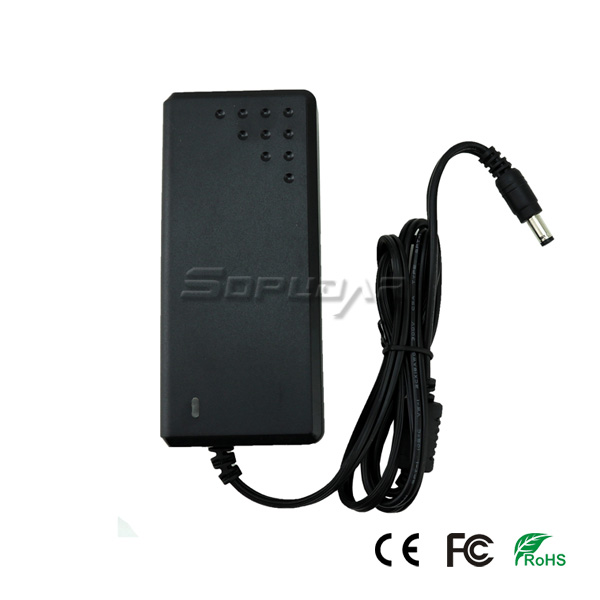

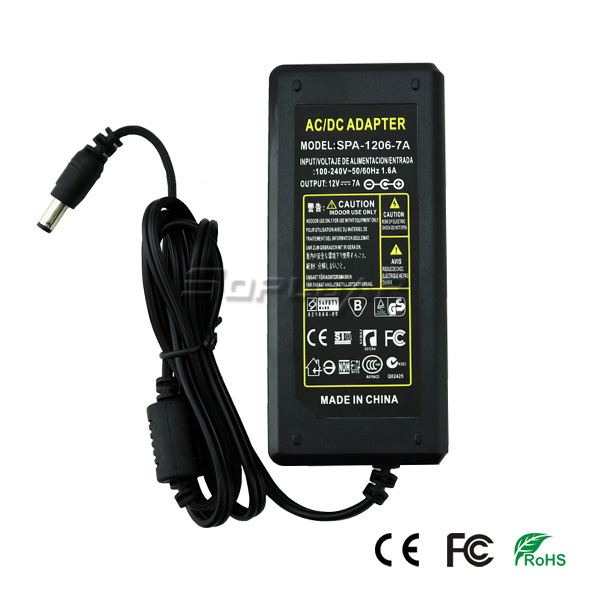

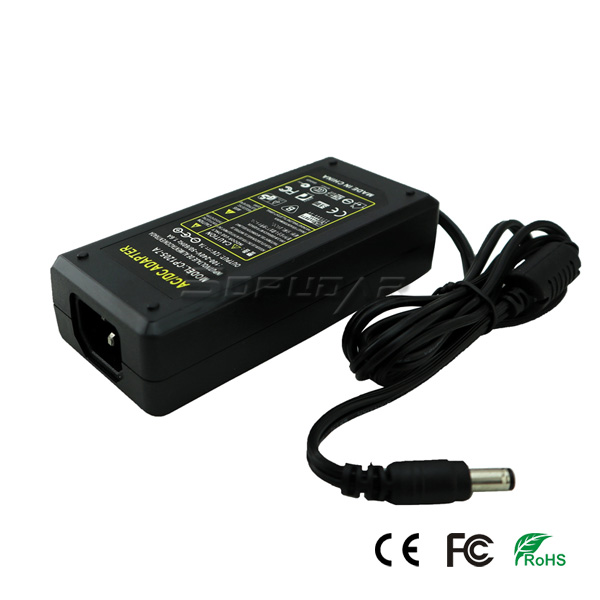

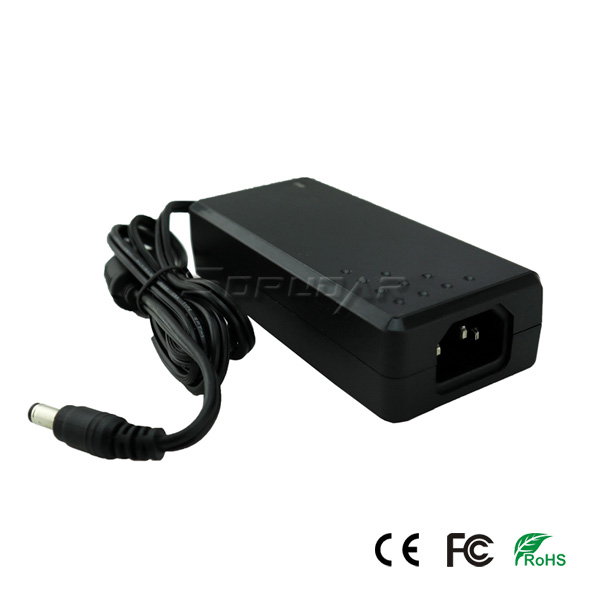

Power Adaptor

SPA-1206-7A

84W Output Power Adapter
DC12V 7A
100% full load burn-in test
Product description: The power adapter can provide 84W output constantly. It is featured with high efﬁciency. It is very suitable for application of CCTV security system, IT equipment, consumer electronics, home appliance
INQUIRY

Features:

1. 84W CCTV DC Power Adapter

2. Output voltage & current: DC12V 7A

3. Input voltage range: 85~264VAC

4. Built in EMI filter with tiny ripple

5. 100% full load burn-in test

6. Air Cooling

7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature;

Specification:

Model	SPA-1206-7A
DC voltage	12V±5%
Rated Current	7A
Efficiency	85% min
Setup Rise Time	1000MS 50MS/230VAC 1000MS 40MS/115VAC
Hold Time(TYP.)	20MS/230VAC 20MS/115VAC
Voltage Range	85VAC-264VAC
Frequency Range	50-60HZ
Efficiency	85% min
Leak Current	<3.5MA/230VAC 115VAC
Over Load	Rated Output Power 105-140%
Over Voltage	Rated Voltage 140%
Short Circuit	Load automatically after fault conditin is removed to restore
Working Temperature	-20°C~+65°C
Working Humidity	-10%~85% RH
