BNC Connector

SNC-42

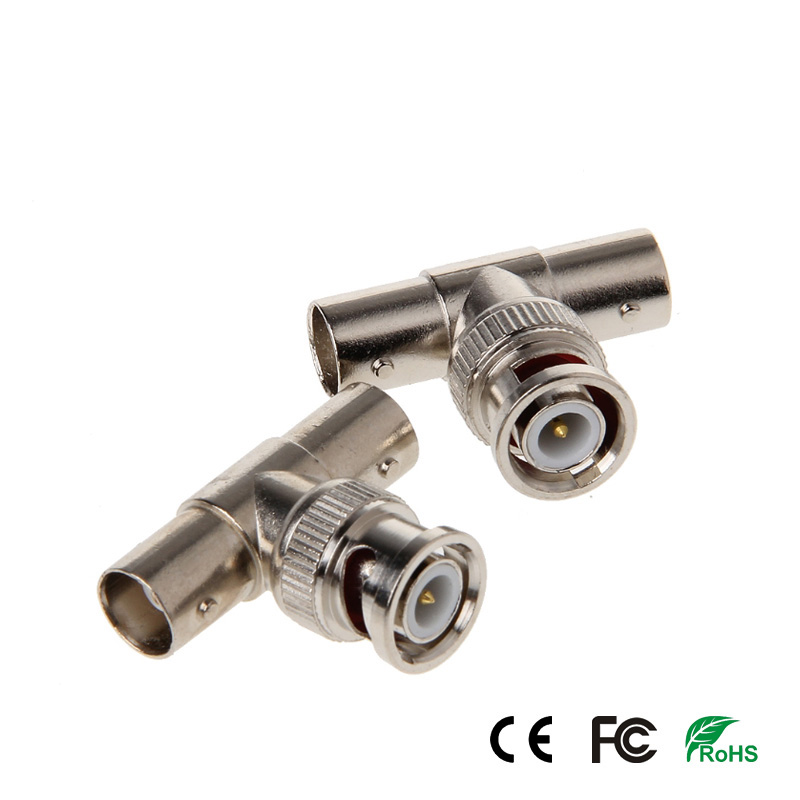

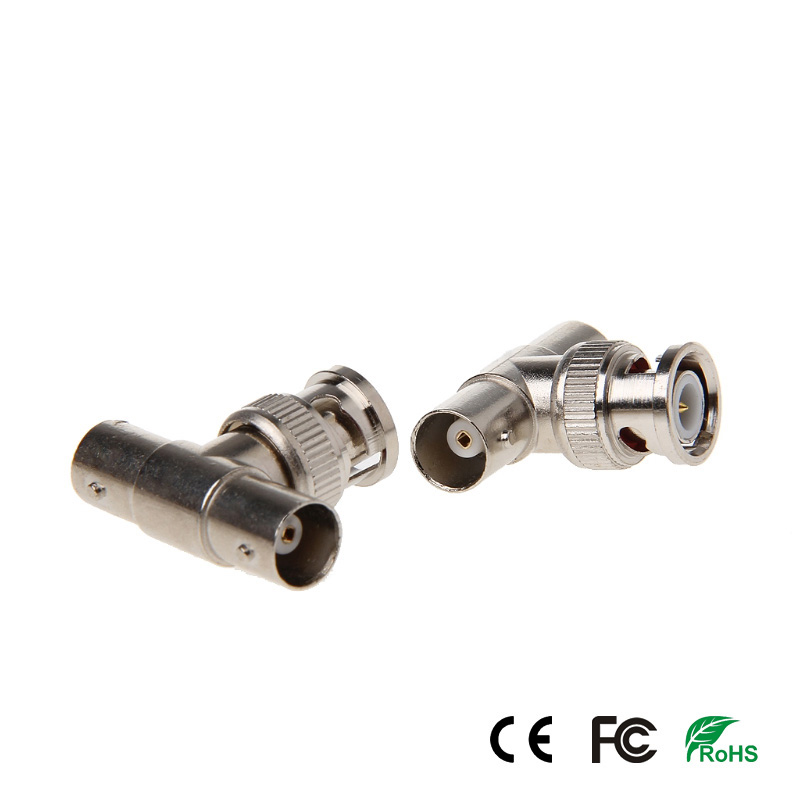

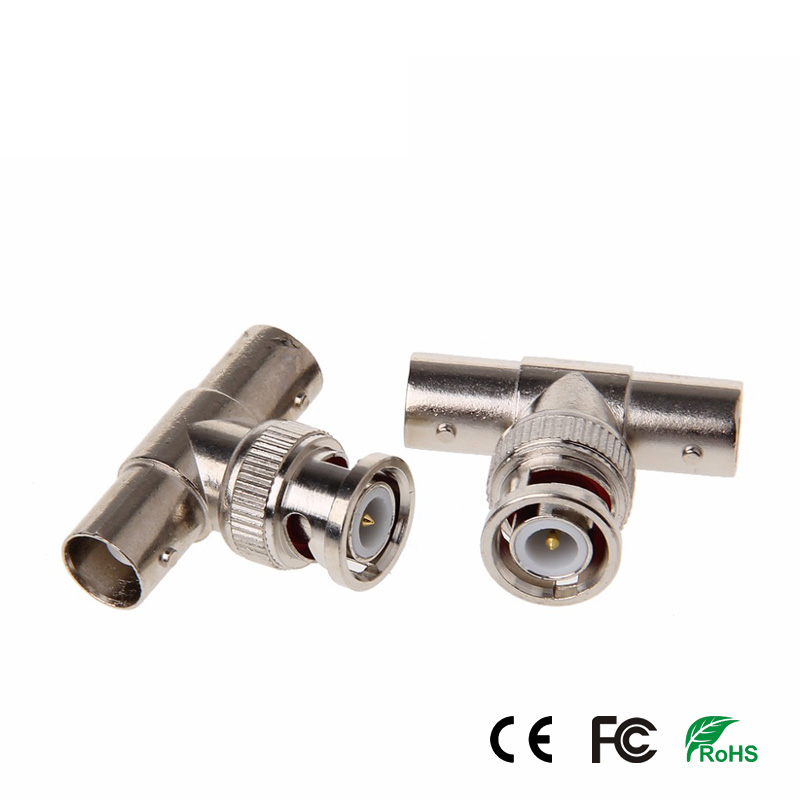

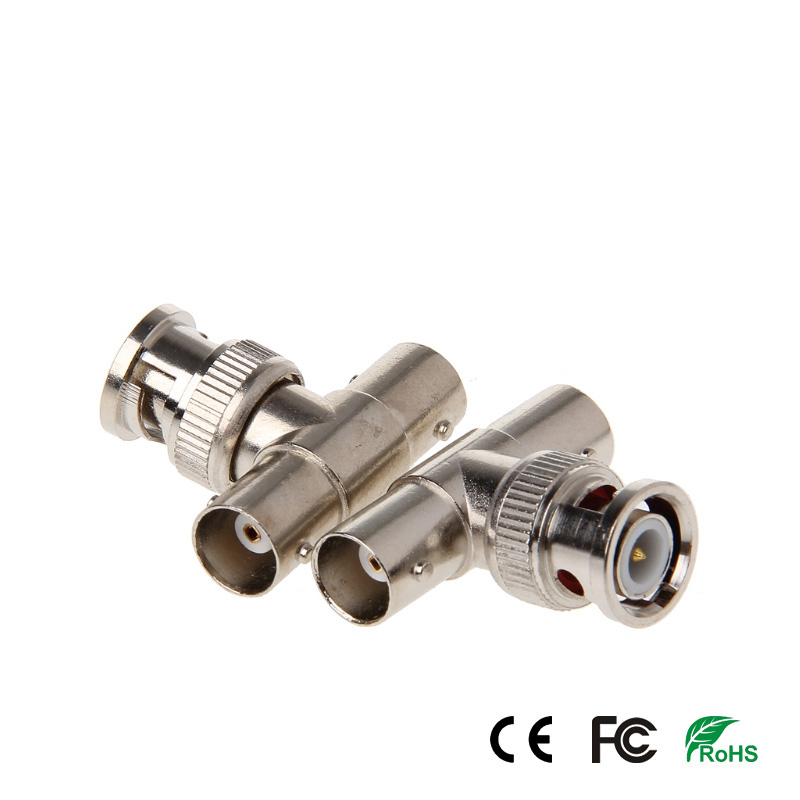

BNC Male to Female T-tpye
Works well with RG58 and RG59 Cable
Simply & Professional apperance design
Easy to operate plug and play
Product description: BNC Male to Female T-tpye Works well with RG58 and RG59 Cable Simply & Professional apperance design
INQUIRY

Features:

BNC Male to Female T-tpye
Works well with RG58 and RG59 Cable
Simply & Professional apperance design
Easy to operate plug and play

100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling

Specification:

Model	SNC-42
Connectors	BNC Male to Female T-tpye
Material	Zinc Alloy Body
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	coaxial cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Temperature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
