BNC Connector

SNC-16

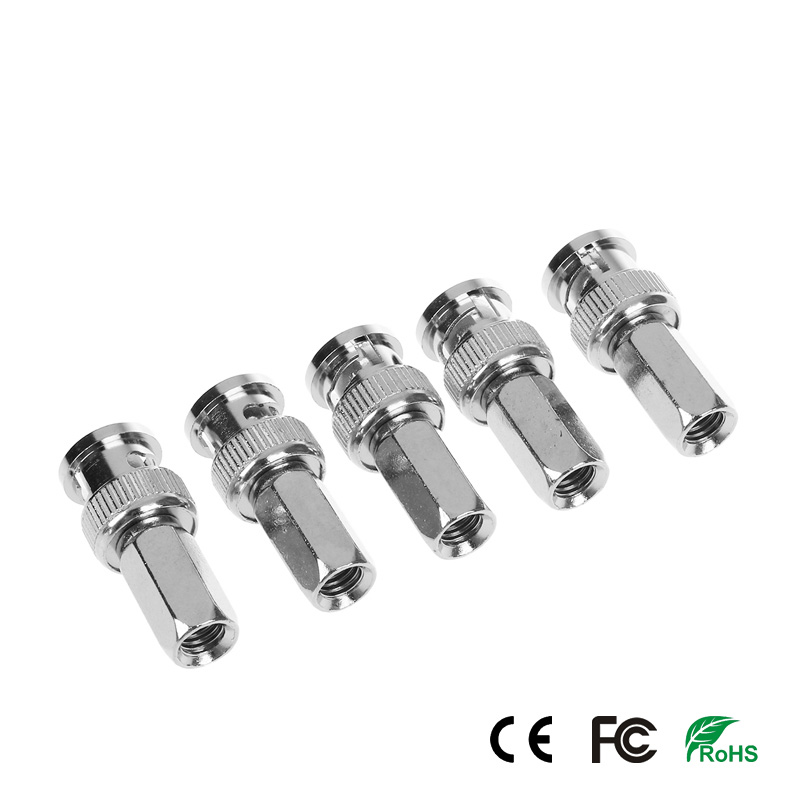

BNC Twist-on Type male
RG58/ RG59/ RG60 optional
Product description: Twist On Type Male RG59 Connector Body style: Straight plug Connector type: BNC
INQUIRY

Features:

Twist On Type Male RG59 Connector
Body style: Straight plug
Connector type: BNC
Material: Zinc Alloy

100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling

Specification:

Model	SNC-16
Connectors	Male BNC
Material	Zinc Alloy Body
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	coaxial cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Temperature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
