Features:

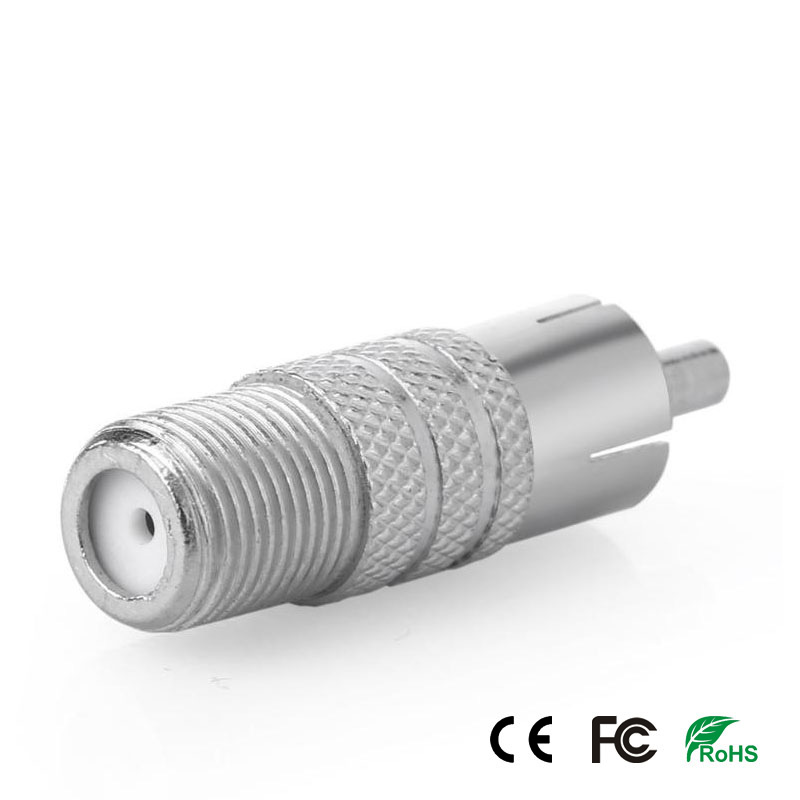

RCA male to F type
Material:Zinc Alloy (Nickel-plated)
100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money
Specification:
| Model | SNC-14 |
| Connectors |
RCA male to F type |
| Material |
Zinc Alloy Body |
| Contact Resistance |
center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Insulation Resistance |
≥5000MΩ |
| Frequency Range |
0~3GHZ |
| Disengage Force |
≥0.6N |
| Attenuation |
0.5dB type |
| Wire Type |
coaxial cable |
| DC Loop Resistance |
52 ohms per 1,000 ft |
| Withstand Voltage |
1500V rms |
| Frequency Response |
DC to 8 MHz |
| Working Temperature |
-10°C to +70°C |
| Humidity |
0 to 95% |
| Packing |
100pcs/bag |
