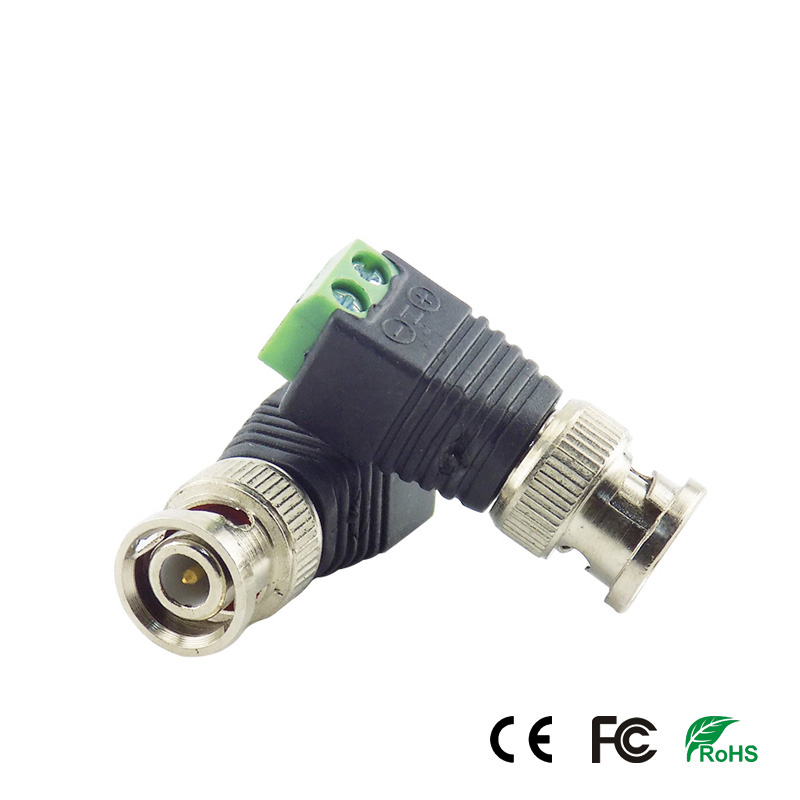

BNC Connector

SNC-03

BNC male Connector
Plug Type: Male Plug
Material: Metal, Plastic
Product description: BNC Male with Screw-type Plug Type: Male Plug; Material: Metal, Plastic
INQUIRY

Features:

BNC Male with Screw-type
Plug Type: Male Plug;
Material: Metal, Plastic
Color: Silver Tone, Black, Green
Dimension: 4.3 x 1.3cm/ 1.7"" x 0.5"" (L*D)

100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling

Specification:

Model	SNC-03
Connectors	Male BNC
Material	Zinc Alloy Body
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	coaxial cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Temperature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
