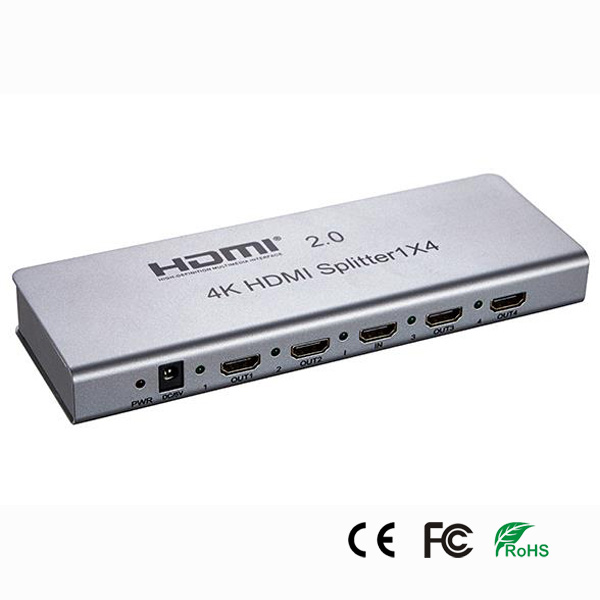

1x4 HDMI2.0 Splitter Ultra HD 4K*2K@60Hz
Features :
Support HDMI2.0 and HDCP2.2
Support 3D video format
Support max resolution 3840x2160@60Hz
Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
Support 8/10/12/16 bit deep colour
Support AWG26 HDMI standard cable:
1). when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
2). when the resolution is 4K, input up to 8 meters, output up to 8 meters.
Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
Built-in IR extension function.(it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)
Support serial port online upgrade
Support EDID management
5V 2A Power Supply
Specification:
HDMI version …………………………………………………………………….. HDMI 2.0
HDCP version ……………………………………………………………………………HDCP 2.2
HDMI resolution …………………………………………………………Up to 3840*2160/60Hz
Support video color format …………………….................……..……… 3D video format
Support video color format ………………………….............……… 8/10/12/16 bit deep colour
Support audio format……………….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………….600MHz
Max baud rate……………….…….………………….…………………………………..6Gbps
Input cable distance……………………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance…………………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current……………………………………………………………………….....1.4A
Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Dimension (L x W x H)………………………………………………… 220x75x24mm(Approx.)
Weight…………………………………………………………………………………………530g(Approx.)
Package included:
1 x 4K HDMI Splitter 1x4
1 x Power Plug Adapter
1 x User Manual
