SHM-404A

Features :
1. Supports 4 HDMI input ports.
2. Supports 4 HDMI output ports.
3. Compliant HDMI 1.4 specification.
4. Serial data rate at up to 3.0Gbps, capable of supporting the following digital video formats in Deep Color Mode at up to 36 bits (12 bits/color).
5. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
6. Supports Digital audio format, such as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
7. Supports signal retiming.
8. Supports Equalizer TMDS Output: 25MHz–300MHz TMDS clock.
9. Supports EDID RAM.
11. Supports 1080P input up to 15 meters AWG26 HDMI standard cable length, output up to 20 meters AWG26 cable length.
12. Inputs can be switched with the IR remote control, also can be controlled by button.
13. Extend the transmission distance and improve transmission signal.
14. Compatible with DVI through a HDMI to DVI adapter.
15. LED indicate signal and power mode.
16. No loss of quality.
17. Install in minutes.

SPECIFICATIONS:
HDMI version........................................................HDMI 1.4, HDCP 1.4
HDMI resolution......24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Supports video color format……..................24bit/deep color 30bit,36bit
Vertical Frequency Range........................1080p@60Hz;
Supports audio format…......................DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
Max bandwidth…….................................................................300MHz
Max band rate……................................................................10.2Gbps
Input/Output TMDS signal ……..........................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……......................................5Volts p-p (TTL)
1080P Input cable distance……........ 15m AWG26 HDMI standard cable
1080P Output cable distance…….....≤20m AWG26 HDMI standard cable
Max working current……...............................................................1.5A Operating
Temperaturer……...........................................(-15 to +55℃)
Operating Humidity range…….................5 to 90%RH (No Condensation)
Dimension (L x W x H)…..............................................275x155x25mm
Weight……..................................................................................960g

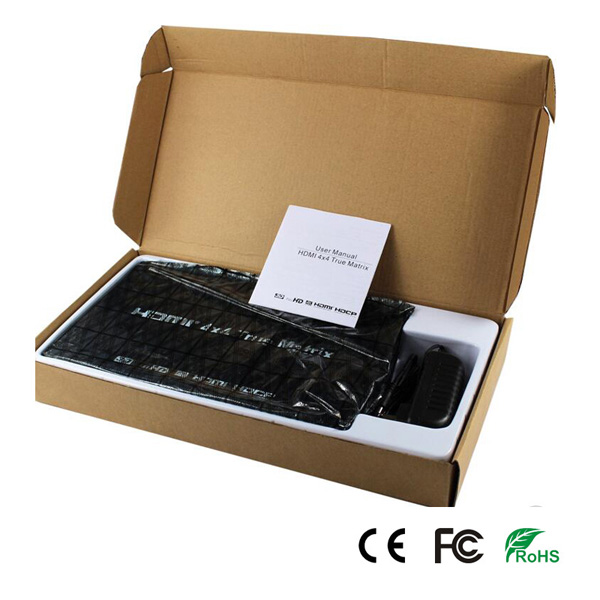

Packaging content:
1.  HDMI 4x4 True Matrix   x1
2.  Remote controller         x1
3.  User Manual                 x1
4.  DC 12V Power Adapter   x1
