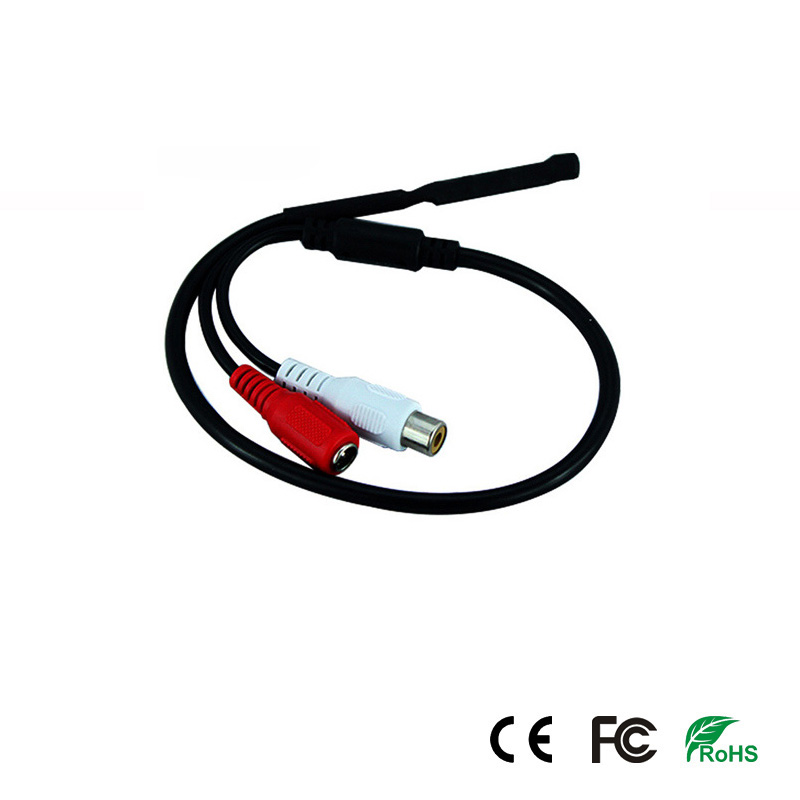

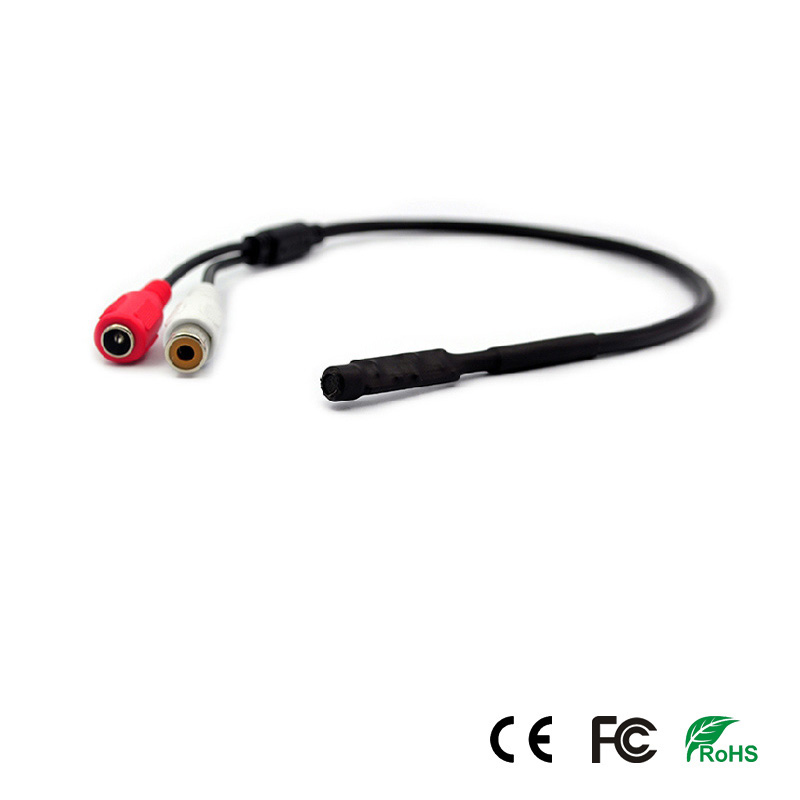

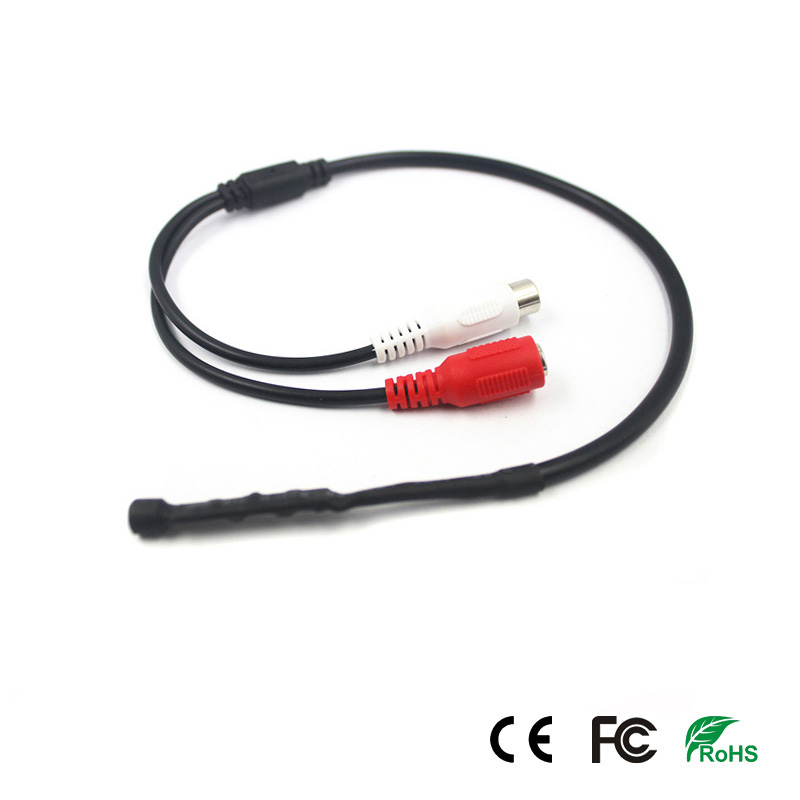

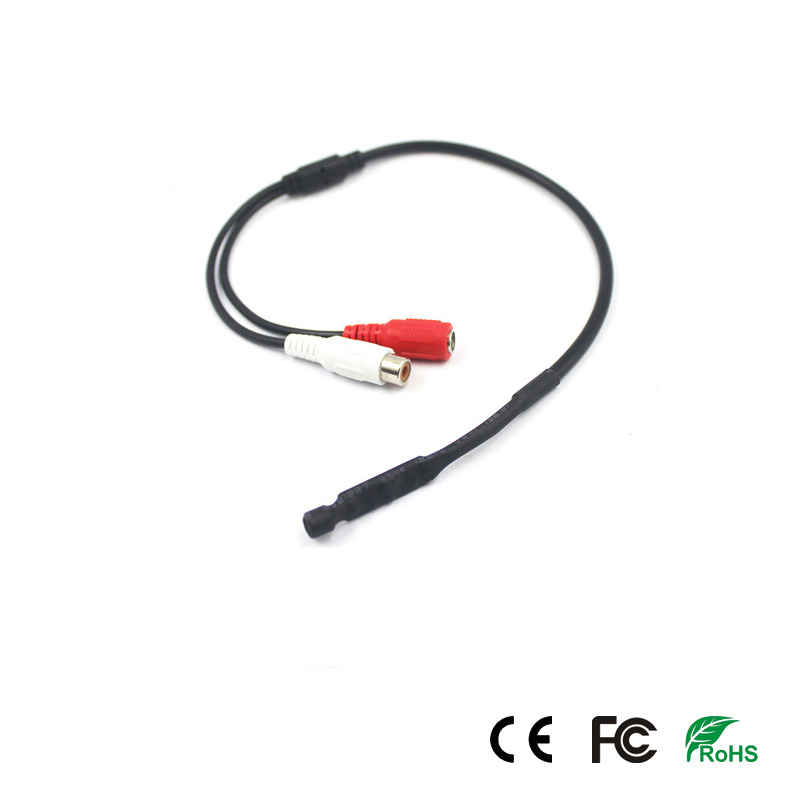

Audio Pick-up

SAP-602

Audio pickup for CCTV System
Audio Montor Range:30m2
Product description: ◆ DSP built-in noise reduction circuit ◆ AGC circuit built-in gain ◆ Tone processing circuit
INQUIRY

Model	SAP-602
Audio Monitoring Range	30m2
Sensitivity	-47DB
Work Voltage	4-14V
Current Consumption	5mA-60mA
Frequency Range	100~~5kHz
Frequency Response	2.5dB
Max output Voltage	5VPP
Output Impedance	600Ω
Working Temperature	-10°C to +70°C
Monitoring of: 10 m2 100m2 Signal transmission line With a core line with the best shield
