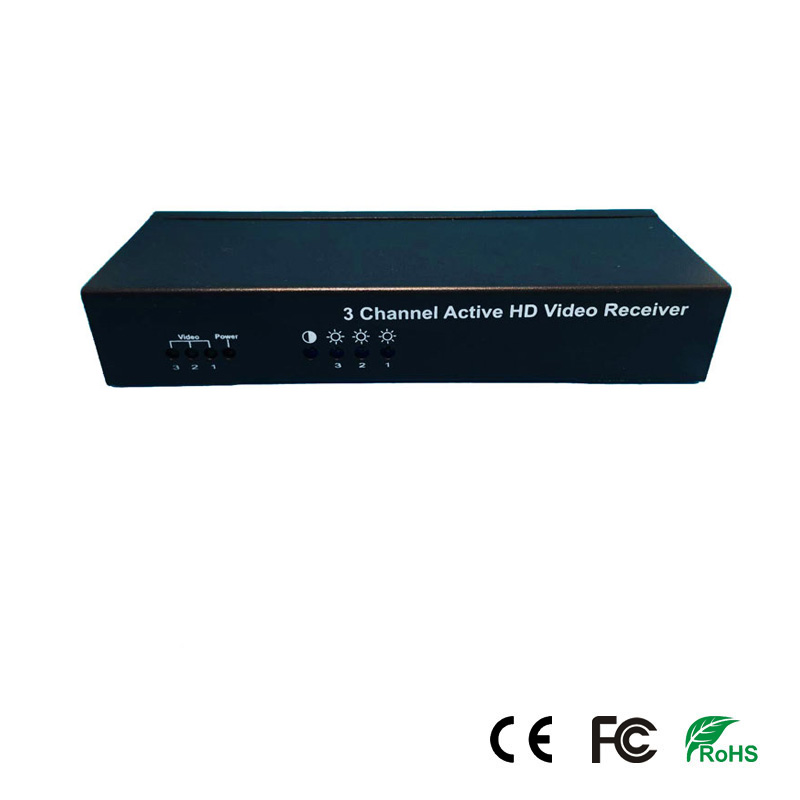

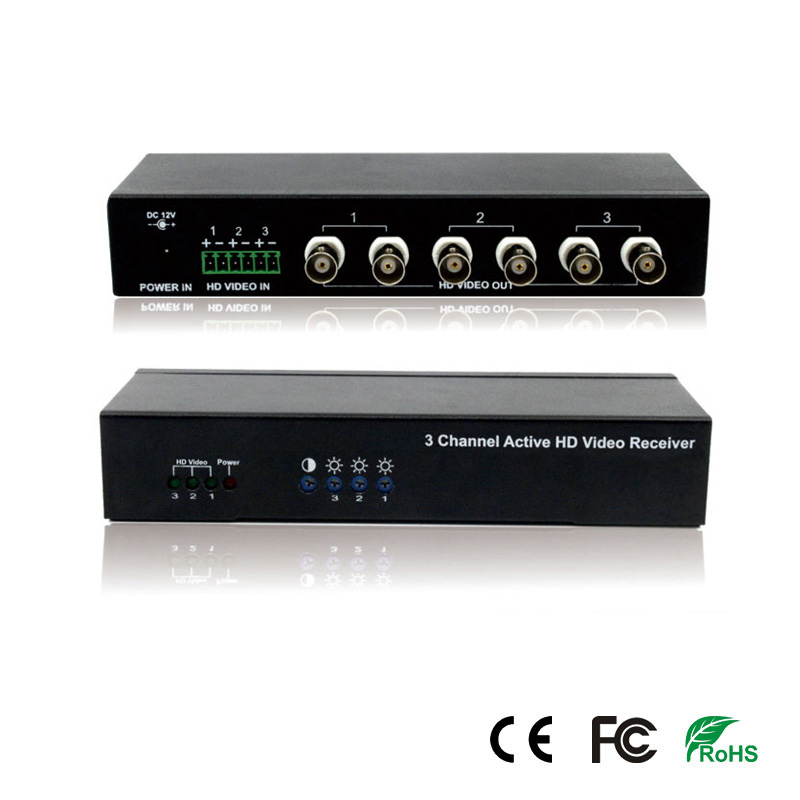

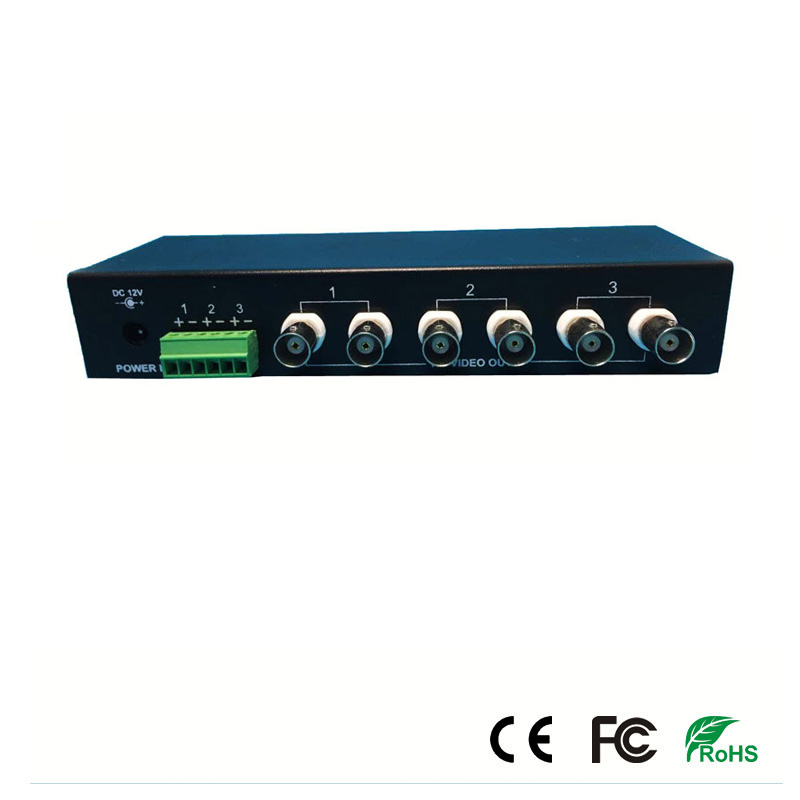

HD Active Video Balun

  • SAB-302
  • SAB-302
  • SAB-302
SAB-302SAB-302SAB-302

SAB-302

  • HD-CVI/ TVI/ AHD & CVBS
  • 1080P/ 3MP/ 4MP/ 5MP/ 8MP
  • Built in solid state TVS for surge protection
  • No power required
  • Product description: HD Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS, Support 1080P/ 5MP & 8MP, Built in solid state TVS for surge protection
  • INQUIRY

Features:
1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable  for Neat installtion
6. ABS engineering plastic housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade:III
9. Wave Filter design, Anti-statit design
10. Real-time transmission over UTP Cat5e/6


Specification:

Model SAB-302
Balun Type Passive
Video transmitting distance HDCVI / CVBS: Up to 600m for 720P
AHD: Up to 300m for 960H/1080P
HDTVI: Up to 300m for 720P/1080P

Video Formats NTSC, PAL, SECAM
Crosstalk & noise immunity 60dB
Transient supression protection Yes
Frequency Response DC to 8MHz
Wire Type Unshielded Cat-5 or above twisted pair wire
Impedance BNC:75 ohms; Terminal: 100 ohms
Material ABS engineering plastic
Working Temperature -20°C~+65°C
Working Humidity -10%~85% RH
